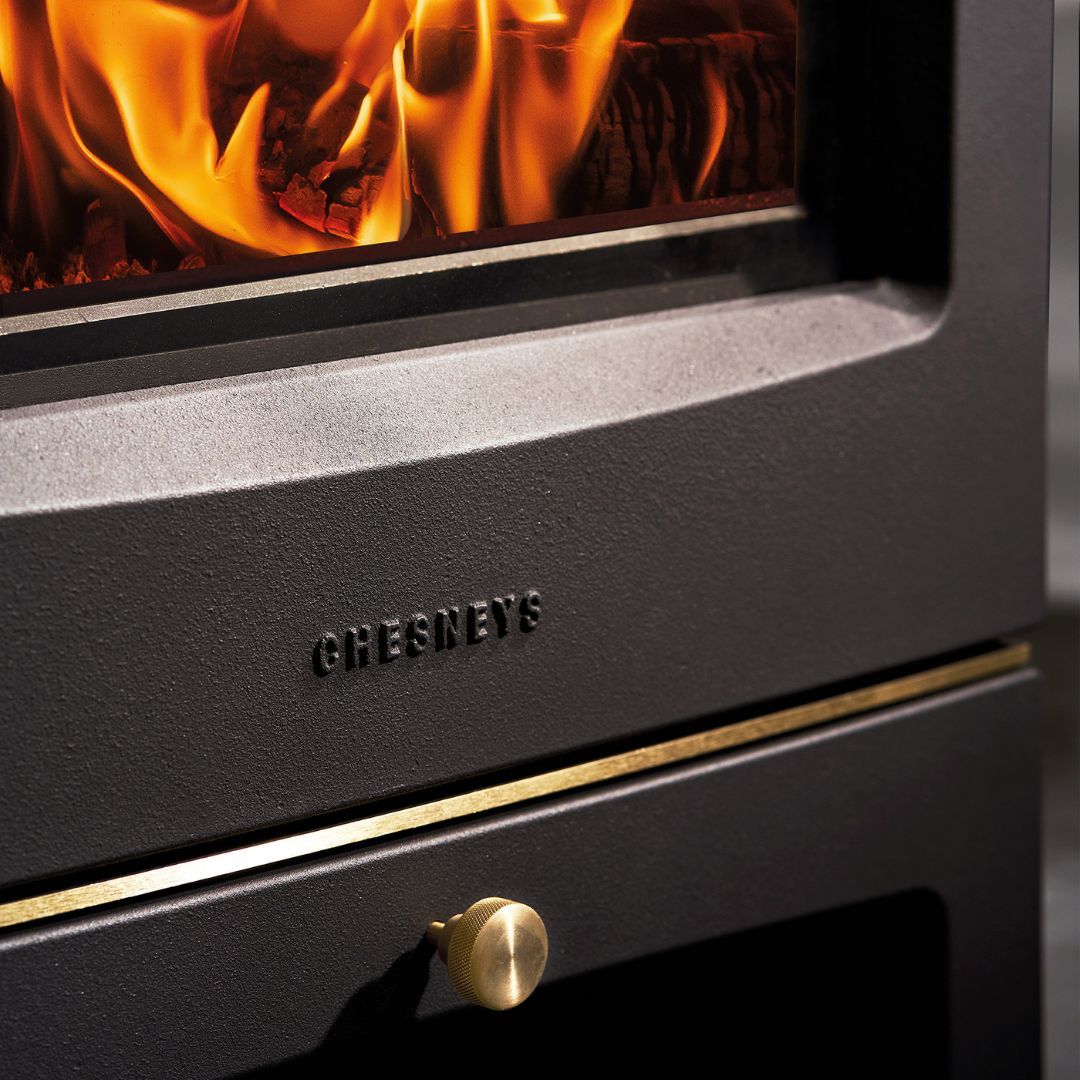

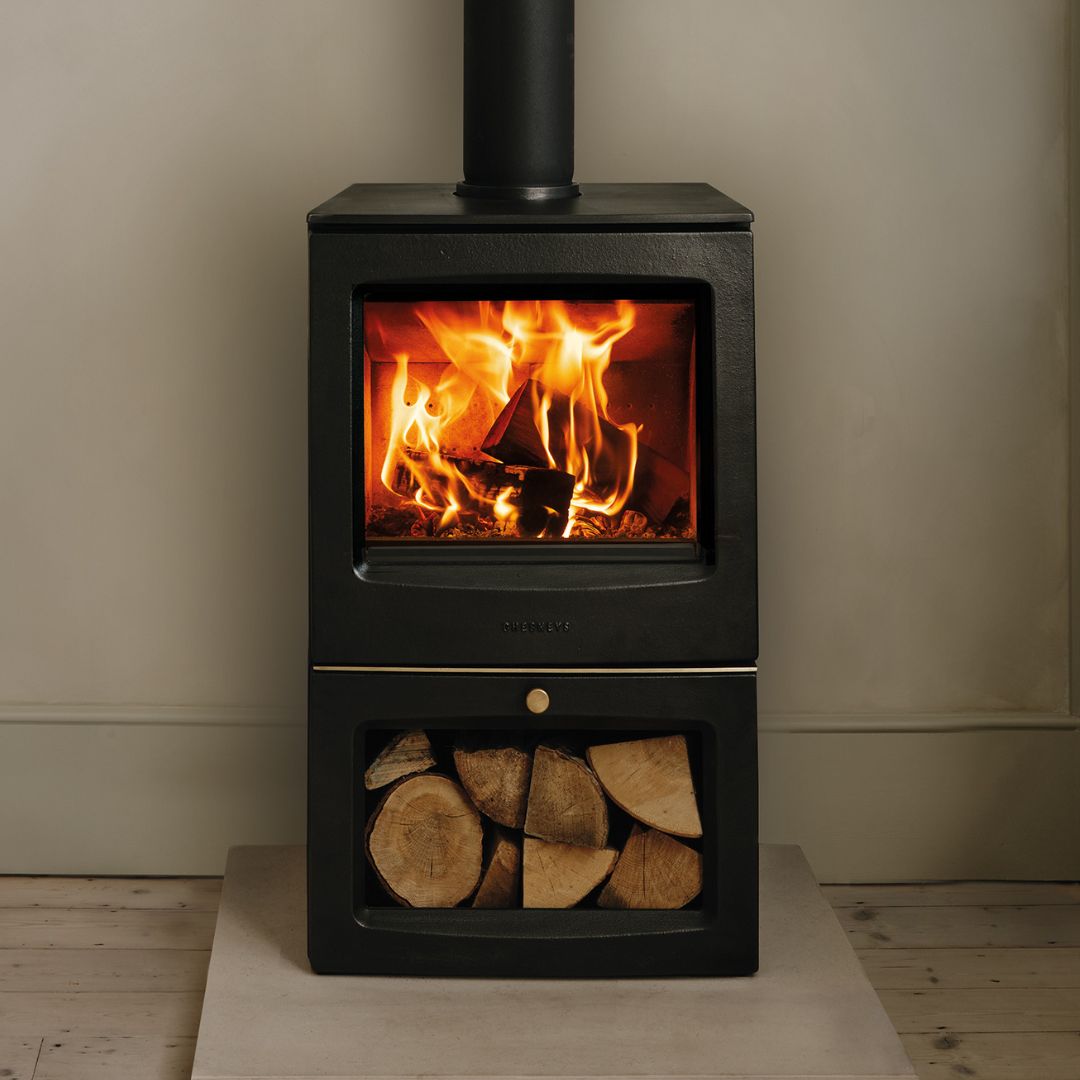

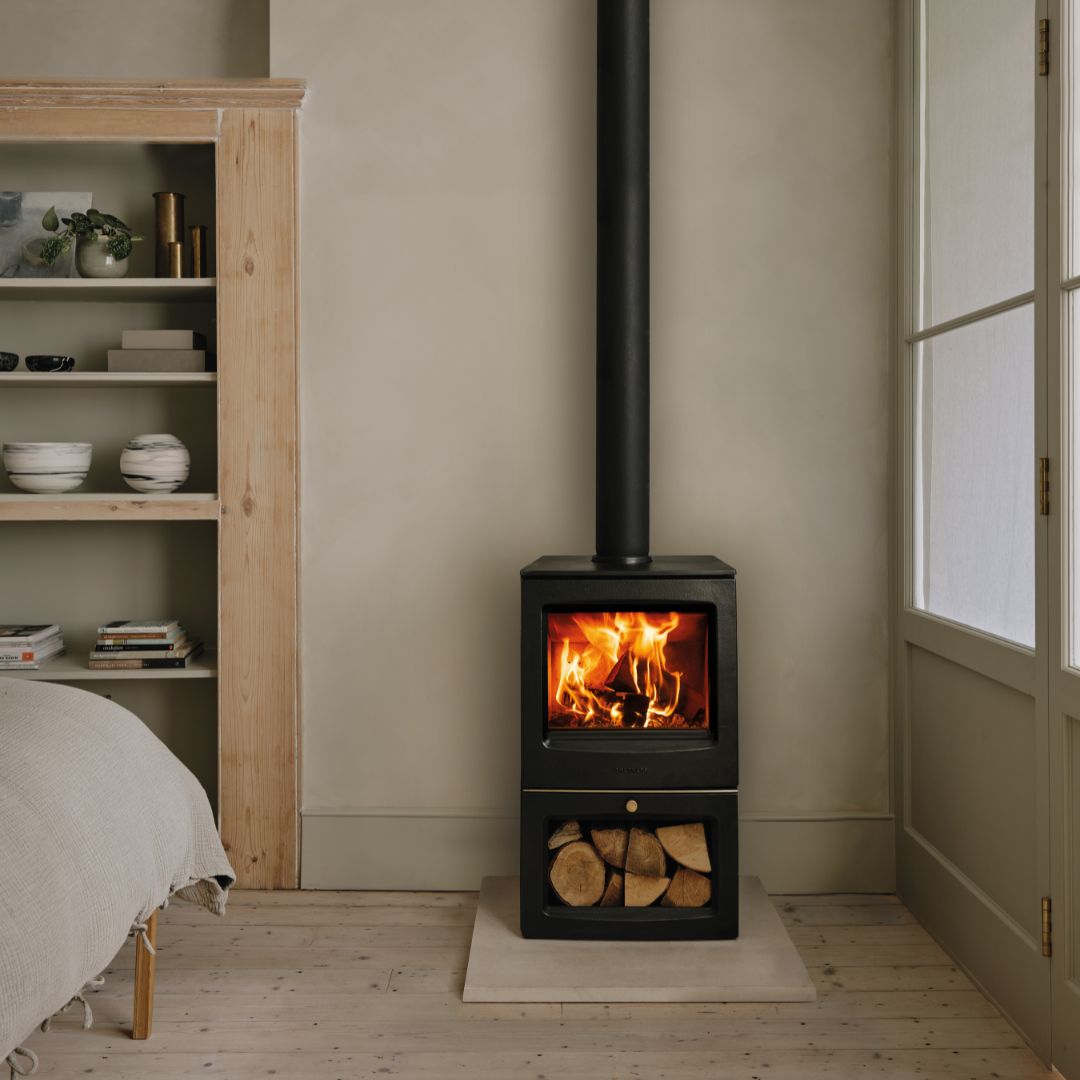

Chesneys Sanctuary 5WS/LS Logstore Wood Burning Stove – 4.9 kW

• Nominal Heat Output – 4.9kW
• Heat Range – 3.5–7 kW
• Flue Gas Mass Flow – 3.2 g/s
• Energy Efficiency – 86.4%
• Energy Index – 116
• Energy Class – A+
• Seasonal Efficiency – 76.4%
• Flue Outlet – 127 mm
• Distance to Combustibles (Rear) – 200 mm
• Distance to Combustibles (Rear, with insulated flue) – 100 mm
• Distance to Combustibles (Sides) – 400 mm
• Height – 807mm
• Width – 480mm
• Depth – 390mm
• Weight – 150kg
• Test Fuel Size – 0.96 kg
• Fuel – 1 log (<15% moisture, 30 cm × 7 cm)
• Mean CO Emission @ 13% O₂ – 0.08 vol%
• Mean NOx Emission @ 13% O₂ – 105 mg/m³
• Mean CxHy Emission @ 13% O₂ – 48 mg/m³
• Mean Dust Emission @ 13% O₂ – 11 mg/m³
• Mean Flue Gas Temperature – 200 °C

• User & Installation Instructions

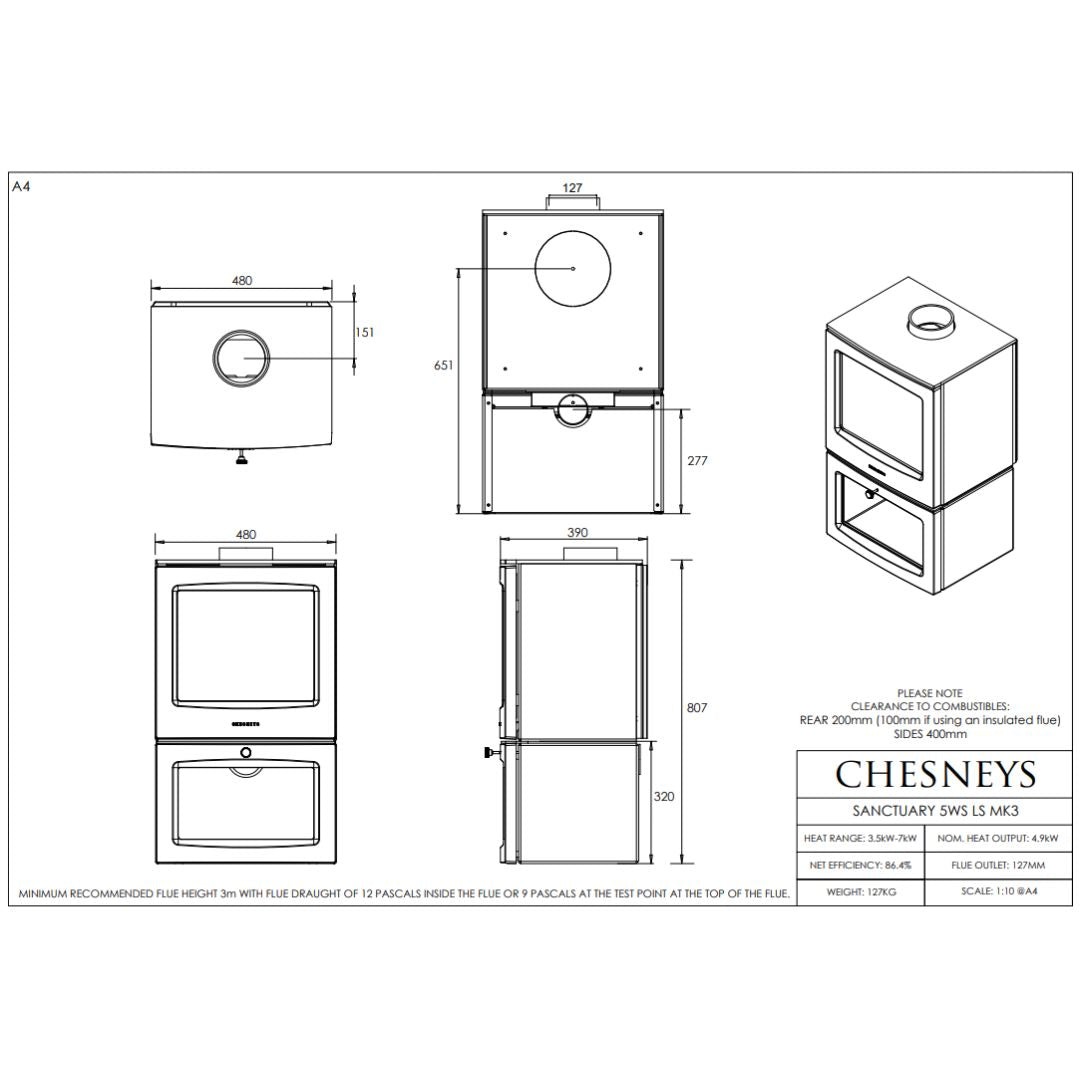

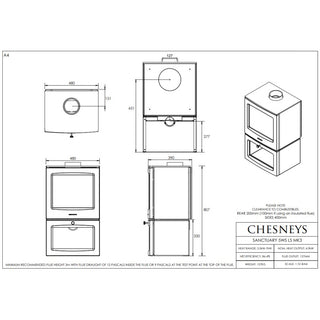

• Drawings
• Energy Label
• Brochure
