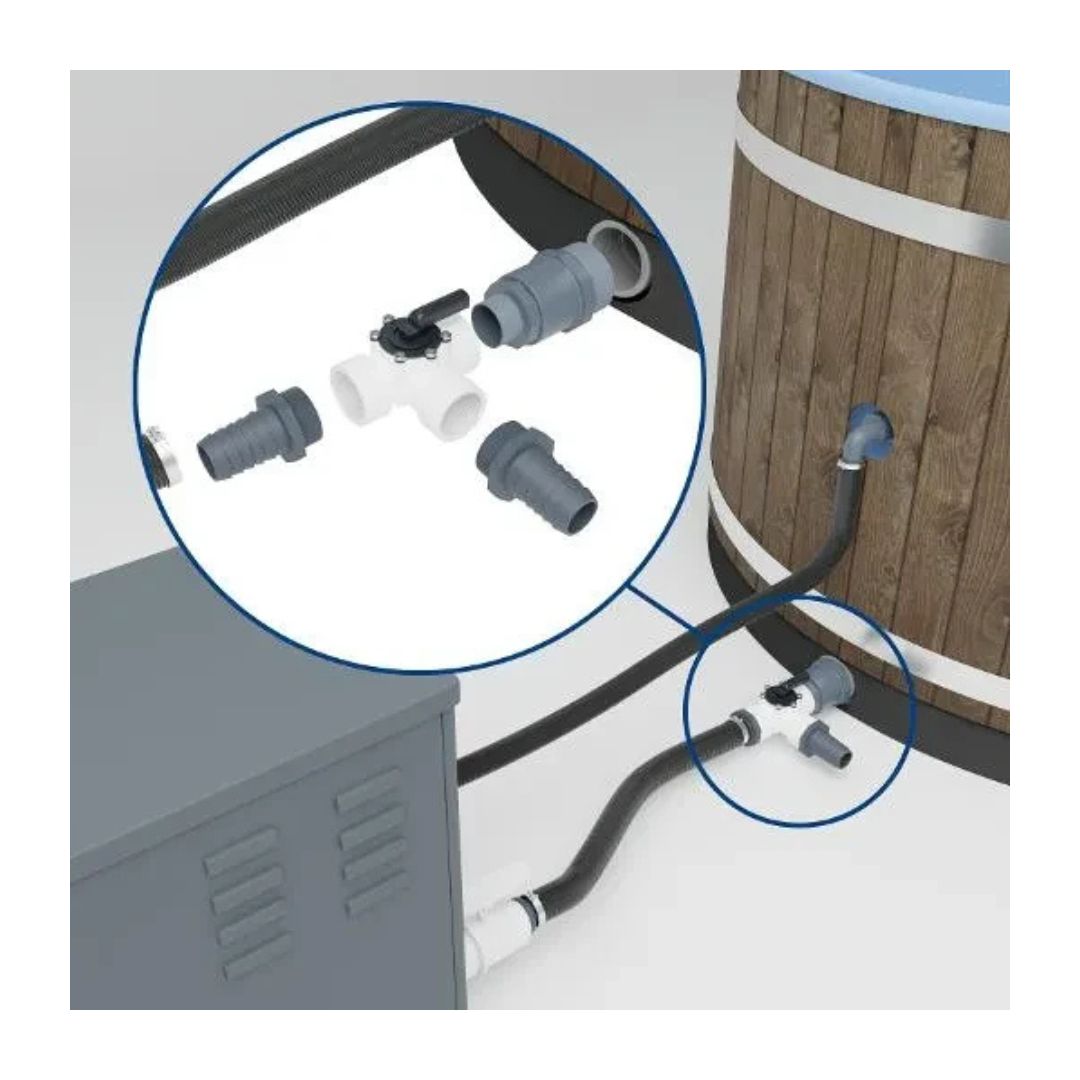

The Kirami Middle Outlet Kit is designed to improve drainage efficiency when using an external filter system with a round plastic hot tub. Installed between the filter and the tub, it replaces the standard outlet valve, making it easier to empty your pool and service your filtration setup.

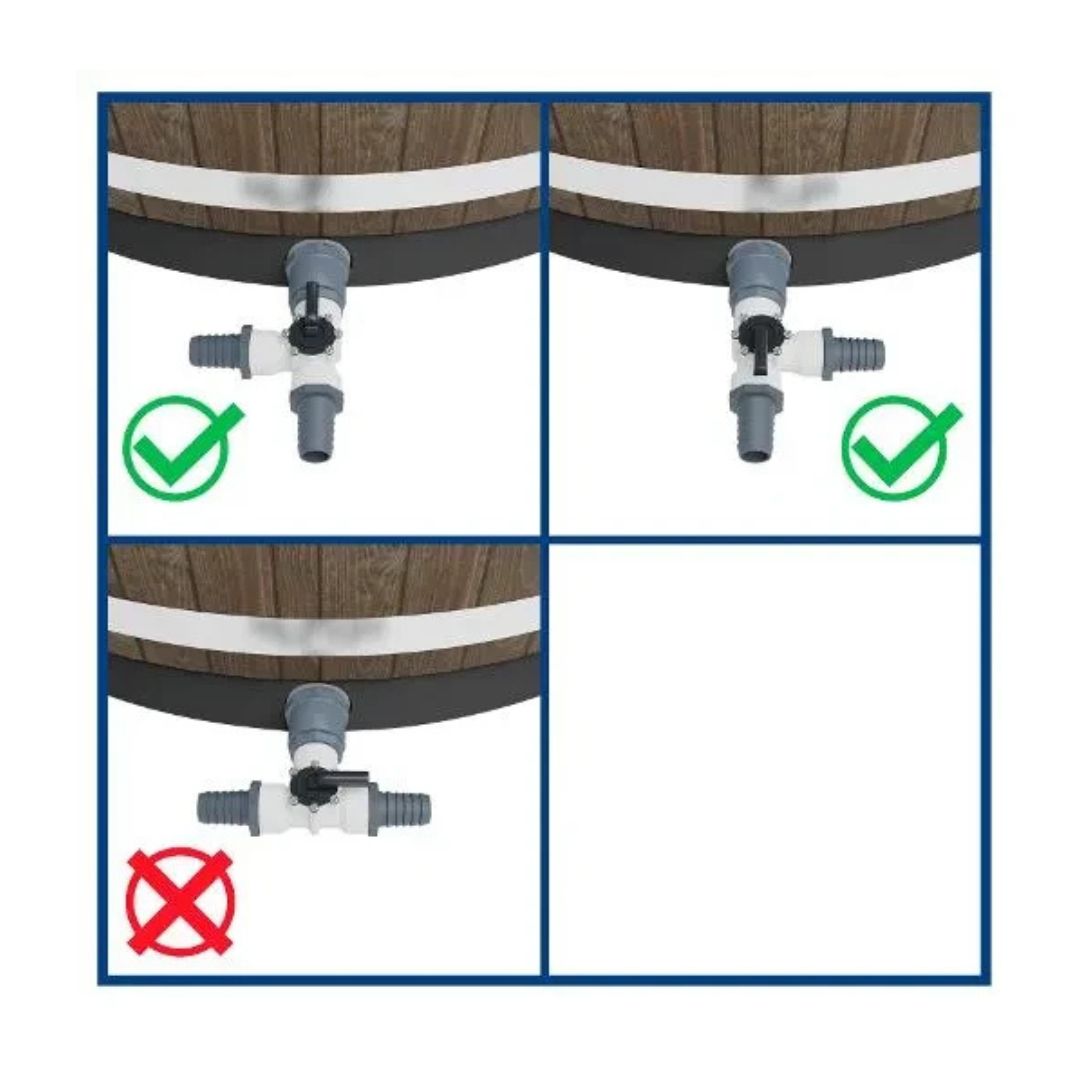

The three-way valve offers flexibility in installation, allowing the outlet to point either right or left depending on your space. It also provides the convenience of stopping water flow from the tub to the filter, making maintenance tasks such as cleaning or replacing the filter mass simpler. Note: the return valve on the filter must also be sealed when stopping the flow.
While this kit replaces the original Kirami drain valve, some residual water will remain in the drain pipe. Before filling your hot tub, we recommend flushing it through the upper outlet to clear any remaining water from the system.

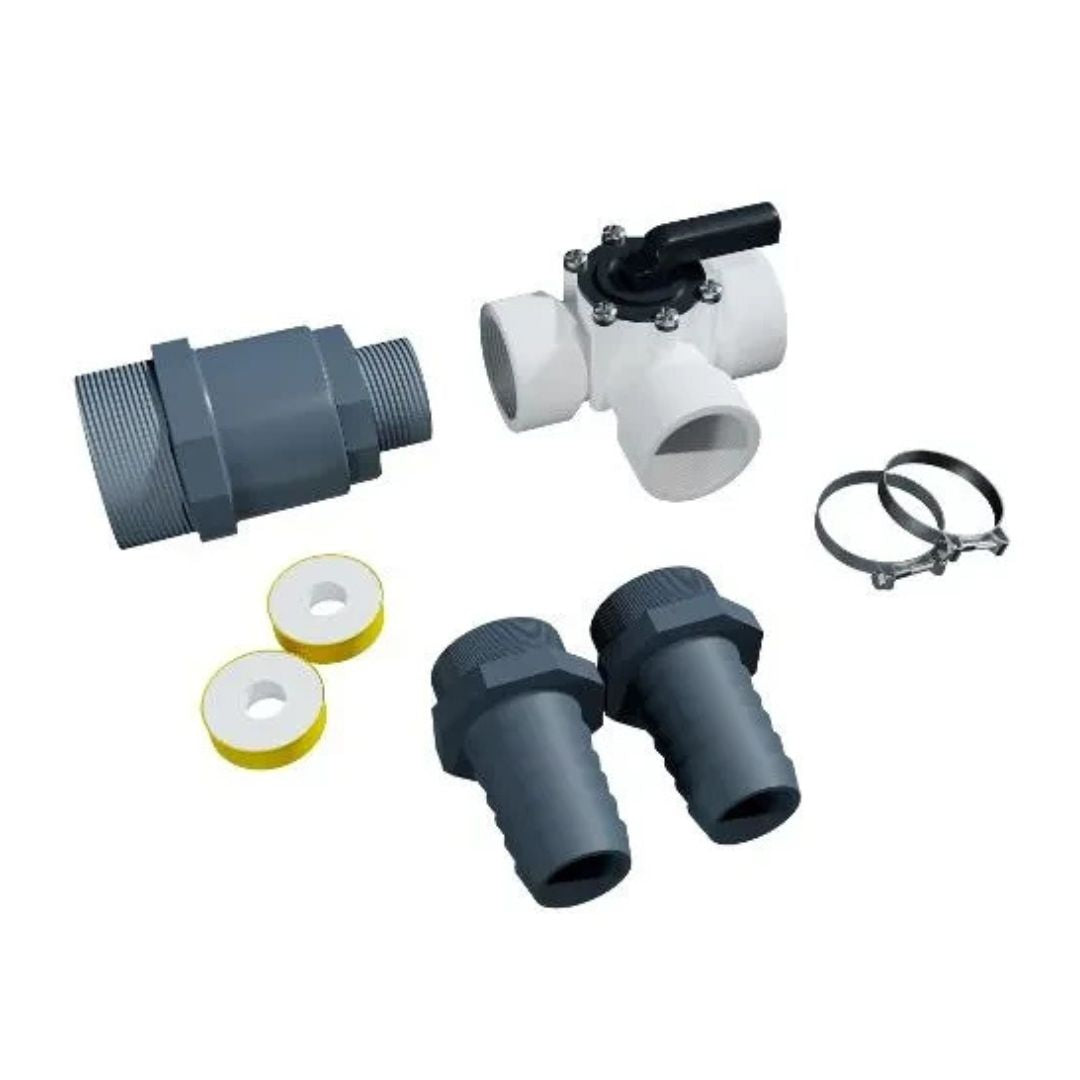

Kit includes:
– Conversion nipple (1 ½" x 2 ½" outer thread)
– Three-way valve (1 ½" inner thread)
– 2 hose couplings (1 ½" outer thread, 38 mm inner diameter, grey PP)
– 2 hose clamps (12 mm wide, 32–50 mm W5)
– 2 rolls of pipe tape
