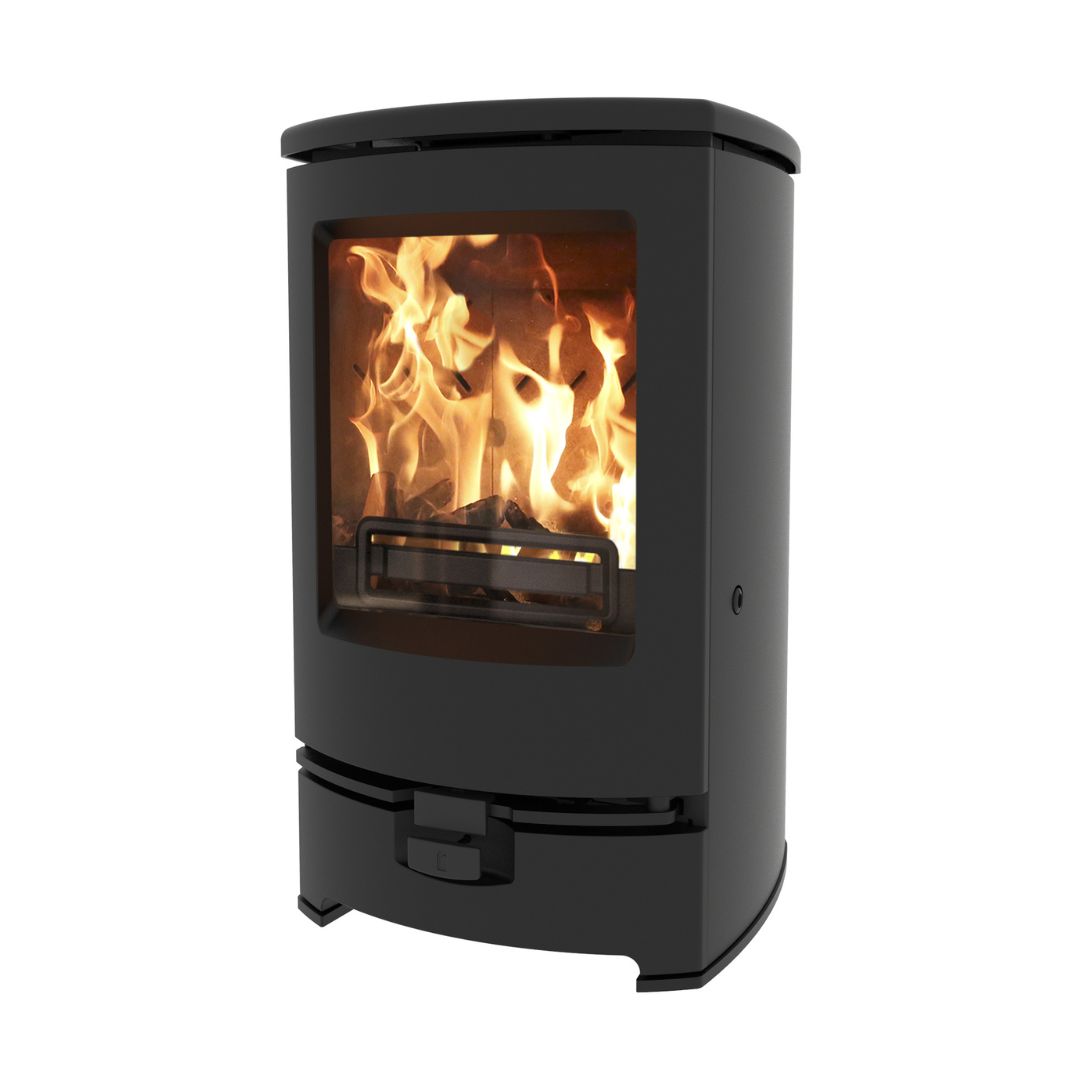

Charnwood Arc 5 Low Stand Multi Fuel Stove - 5kW

• Nominal Output - 5kW
• Efficiency (%) - 81% Wood, 82% Solid fuels
• Range Rating (K/W) - 2 to 7 kW
• Energy Rating - A+
• Distance To Combustibles (Rear) - 200 mm, 80 mm (with insulated flue & heat shield)
• Distance To Combustibles (Sides) - 300 mm, 270 mm (With insulated flue & heat shield)
• EcoDesign Ready 2022 - Yes
• DEFRA Approved - Yes
• Fuel Type - Multi Fuel
• Log Length - 25 cm
• Flue Size - 125 mm (5")
• Flue Options - Top or Rear
• Height - 733 mm
• Width - 453 mm
• Depth - 445 mm
• Weight - 130 kg
• Material - Steel
• Suitable For 12 mm Hearth - Yes

• User Guide - Charnwood Arc 5
• Product Fiche - Charnwood Arc 5
• Declaration of Performance - Charnwood Arc 5

Shipping Restrictions:

• We do not ship to Northern Ireland or the Republic of Ireland.

Delivery Vehicles & Access:

• Nationwide deliveries are made using 18-tonne lorries via Palletline and local deliveries in the Stirling area are usually made by a 12-tonne delivery vehicle with our own driver.
• Smaller vehicles may be available on request, but this cannot be guaranteed. If you need a smaller vehicle, please notify our team each time you order.
• Full Pallets of Briquettes will always be delivered on the larger 18 tonne vehicles - they cannot be delivered on small 7.5 tonne vehicles due to the weight limits restriction on the tail lifts.

Delivery & Unloading Process:

• Deliveries are kerbside only, but where possible, the driver may move the pallet closer to your property if terrain allows.
• The lorry is equipped with a tail lift and the driver will use a pallet truck to unload your goods.
• Important: Pallet trucks can only be used on firm, level ground such as concrete, tarmac, or monoblock. They cannot be used on slopes, loose gravel, grass, or mud, so an alternative drop-off location would be required.

Space & Access Requirements:

• The delivery lorry is approximately the size of a fire engine. If you have restricted access, please inform us before ordering.
• Pallets are about 1.2 m wide, so ensure gates or entryways are wide enough to accommodate them.
• Drivers are not insured to unpack or carry goods into your house.

Empty Crate & Pallet Collection Policy:

• Disposal of crates and pallets is the customer’s responsibility.
• Delivery drivers are unable to collect empty crates or pallets after delivery. This is due to carrier restrictions – empty crates can be classed as waste, requiring a waste carrier’s licence, and vehicles often do not have space to take them back.
• Many customers cut the crates up for kindling (they’re kiln-dried, so ideal for this), or offer them for free on local selling pages, where they’re often collected quickly.

Delivery Dates & Timings:

• You can select a preferred delivery date at checkout. We aim to deliver on this date, but if we can’t, we will contact you to arrange another suitable time.
• For IV, KW, HS, ZE and some PA and PH postcodes, we cannot guarantee a specific delivery date. If your order is time-sensitive, please contact us before purchasing.
• Pallet deliveries are made between 8 am and 6 pm.
• We or our carrier may provide an Estimated Time of Arrival (ETA) on the day of delivery. This is provided in good faith however delays can happen due to unforeseen circumstances.
• ETAs can only be provided on the day of delivery and not in advance

Need an Update?

• If you need to check on your delivery, call us on 01786 357057, and we’ll be happy to help.


This information forms part of our Terms & Conditions, which can be found here.
