Charnwood Arc 5 Store Stand Multi Fuel Stove - 5kW

SKU: 009/ARC05SS/GM

£2,652.00

Unit price: per

Nominal Output – 5 kW
Efficiency (%) – 81% Wood 82% Solid fuels
DEFRA Approved Stove
EcoDesign Ready

Colour: Gunmetal

Quantity

(0 in cart)

Quantity

Buy this product to gain points

This is a Sample Product Title

Was $200.00 Now $100.00

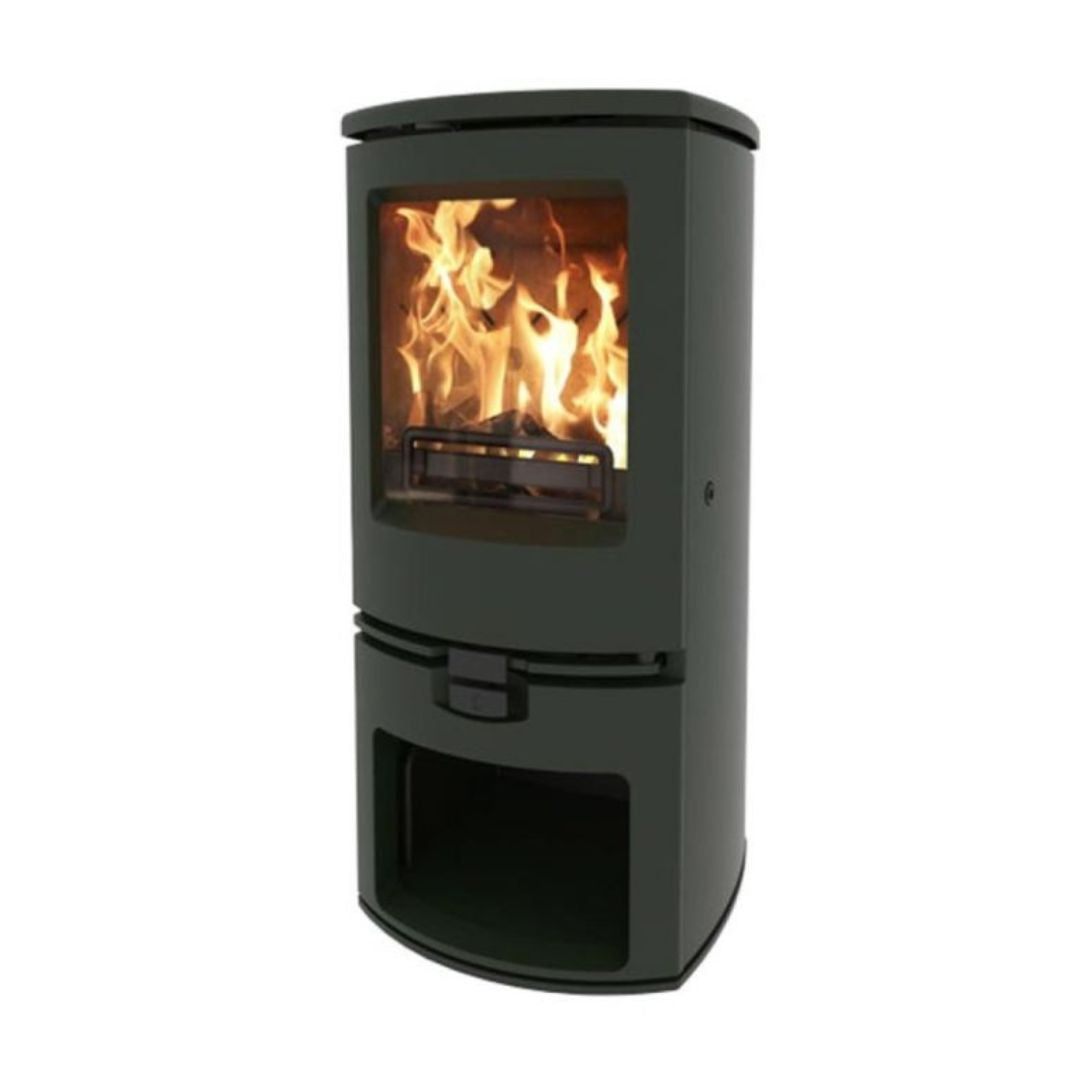

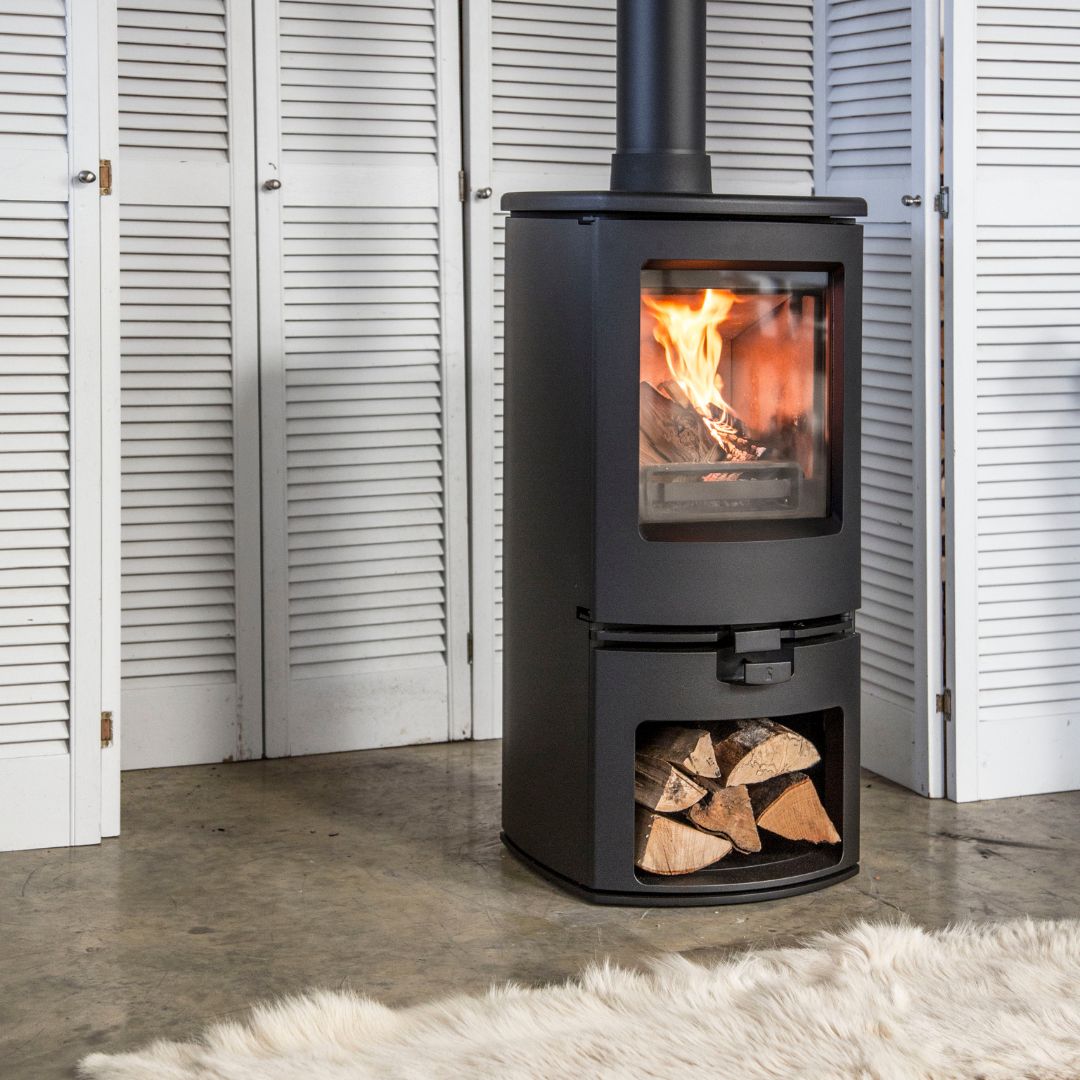

The Charnwood Arc 5 Store Stand Multi Fuel Stove in Matt Black or Gunmetal offers a clean and contemporary design with the added benefit of integrated log storage. Delivering a 5 kW heat output, it's perfect for medium-sized rooms and features advanced clean burn technology for efficient burning of both wood and smokeless fuels.

Its expansive viewing window showcases a beautiful flame picture, creating a cosy and ambient atmosphere. The raised store stand base not only lifts the firebox to a more visible height but also provides practical storage space for logs or kindling, helping keep your room tidy and organised.

DEFRA approved and Eco Design compliant, the Arc 5 combines exceptional performance with elegant styling, making it a smart and attractive focal point in any modern home.
Nominal Output - 5kW
Efficiency (%) - 81% Wood, 82% Solid fuels
Range Rating (K/W) - 2 to 7 kW
Energy Rating - A+
Distance To Combustibles (Rear) - 200 mm, 80 mm (with insulated flue & heat shield)
Distance To Combustibles (Sides) - 300 mm, 270 mm (With insulated flue & heat shield)
EcoDesign Ready 2022 - Yes
DEFRA Approved - Yes
Fuel Type - Multi Fuel
Log Length - 25 cm
Flue Size - 125 mm (5")
Flue Options - Top or Rear
Height - 733 mm
Width - 453 mm
Depth - 445 mm
Weight - 130 kg
Material - Steel
Suitable For 12 mm Hearth - Yes
User Guide - Charnwood Arc 5
Product Fiche - Charnwood Arc 5
Declaration of Performance - Charnwood Arc 5
