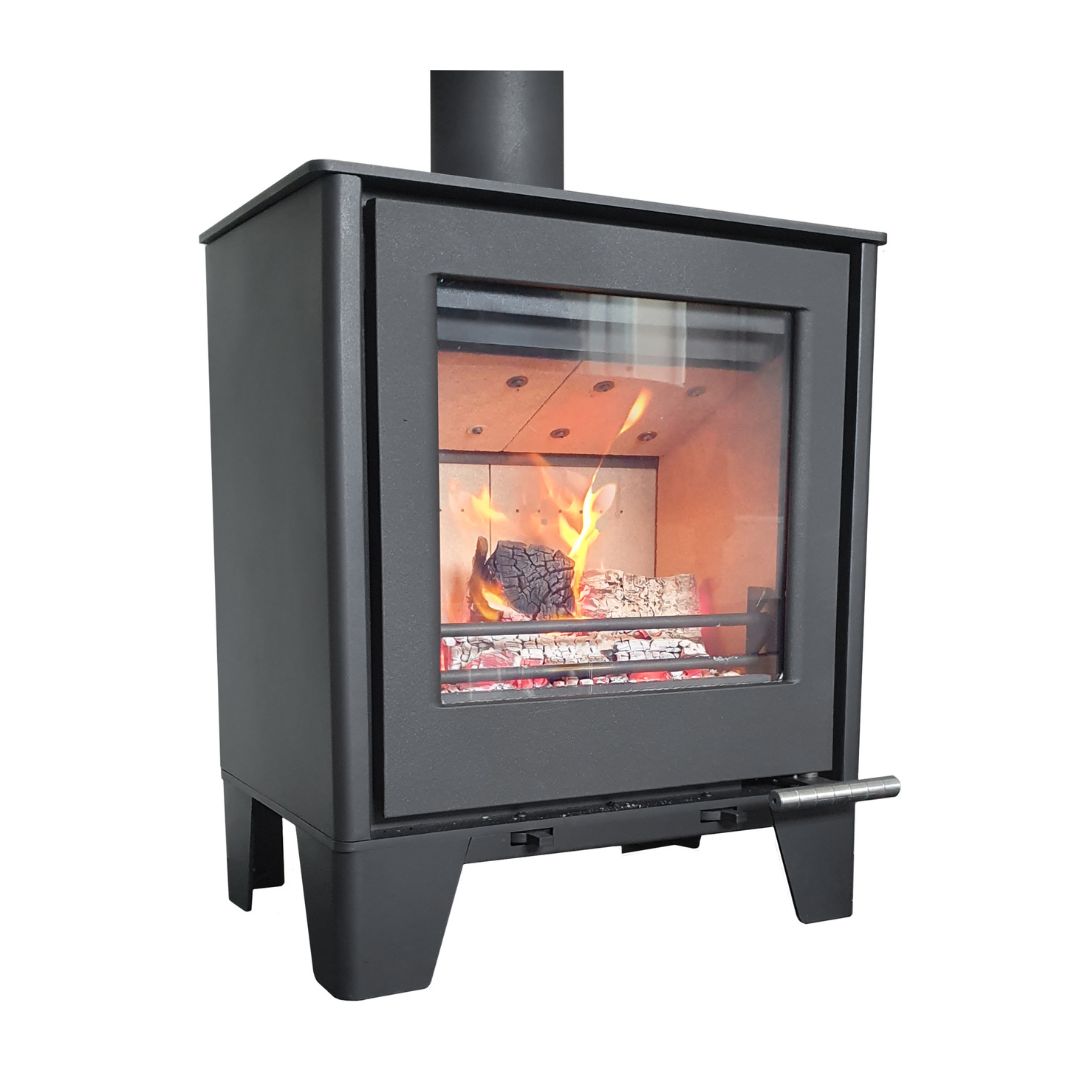

Archer Challenger 5+ Short Leg Multi Fuel Stove - 5 kW

• Fuel – Multi-fuel
• Height – 640 mm (Short Legs), 760 mm (Tall Legs), 760 mm (Log Store)
• Width – 540 mm
• Depth – 365 mm
• Flue size – 125 mm
• Flue location – Top
• Flue centre to back of stove – 90.5 mm (114.5 mm with Heat Shield)
• Weight – 115 kg (SL), 118 kg (TL), 125 kg (LS)
• Nominal output – 5 kW
• Heat range – 4 – 7 kW
• Efficiency – 86%
• Distance to Combustibles (Behind) – 400 mm*, 200 mm* (with Heat Shield)
• Distance to Combustibles (Sides) – 400 mm*
• Distance to Combustibles (Corner) – 360 mm* either side
• Distance to Combustibles (Above) – 375 mm*
• Max log length – 330 mm
• Controls – Separate Primary & Secondary Controls
• External air – Optional
• EcoDesign – Yes
• DEFRA Exempt – Yes**
• Energy rating – A+

* See the manual for the full situational requirements and drawings regarding distances to combustibles.
** Listing on the official DEFRA exempt appliances register is pending, but have been certified as exempt appliances.
