Rytons 82mm Direct Air Venting Kit with Louvre Grill - White

The Rytons 82mm Direct Stove Ventilation Kit provides a practical solution for supplying combustion air directly from outside to compatible wood-burning and multi-fuel stoves.

Designed for stoves with a 75–80mm diameter external air inlet, the kit connects to the manufacturer's air supply outlet at the rear of the stove, allowing combustion air to be drawn directly from outside rather than from the room.

This direct connection helps maintain a comfortable indoor environment by avoiding the light and draughts associated with conventional open room ventilators.

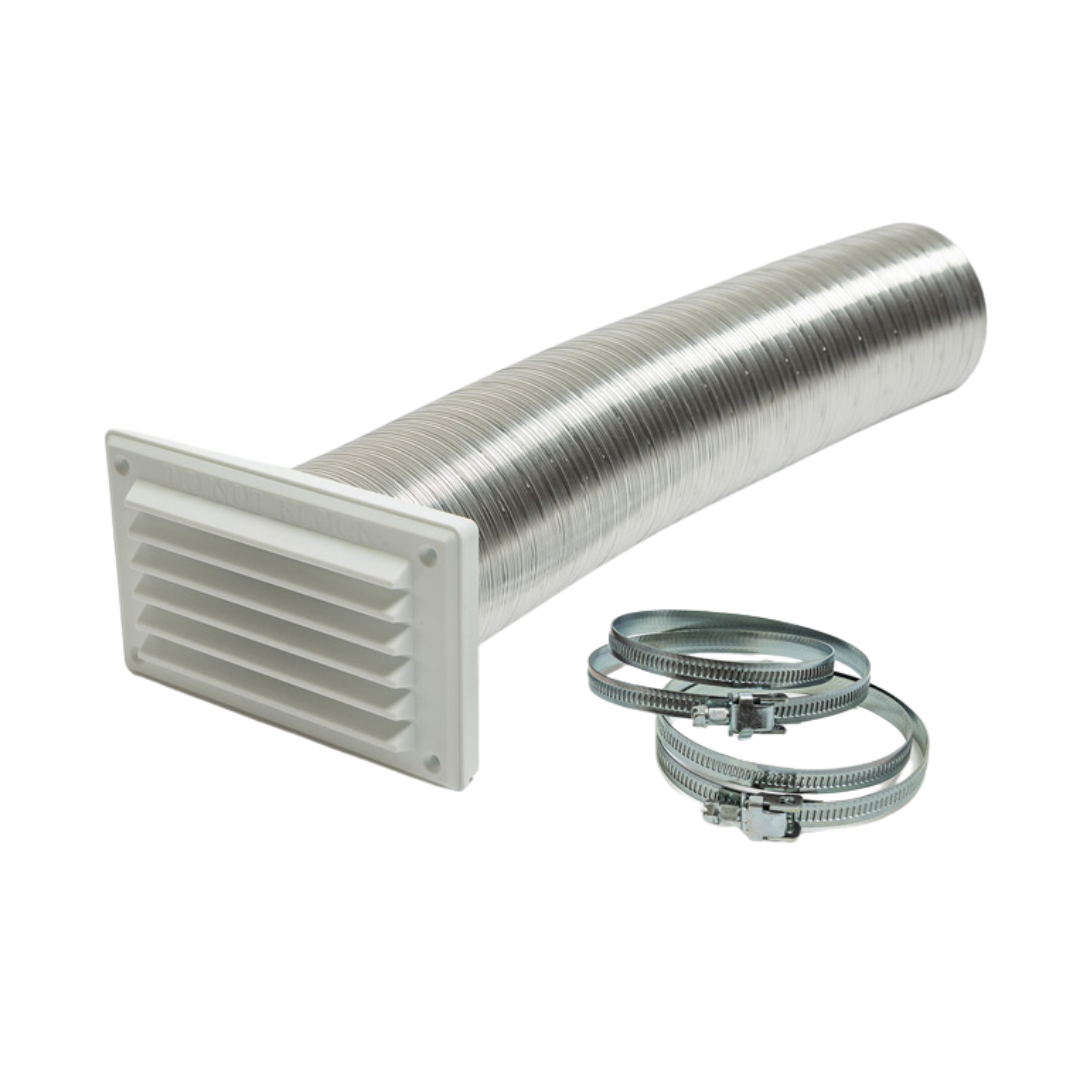

The kit includes a 1.5m semi-rigid aluminium duct, a white external louvre grille, matching backplate and two metal hose clips for installation.

The aluminium ducting is fire resistant to BS476 Part 8 (15 minutes) and suitable for temperatures up to 300°C. The external louvre grille is manufactured from UV-stabilised, high-impact polystyrene to help reduce the effects of sunlight exposure.

Key Features:

• Designed for stoves with a 75–80mm diameter external combustion air inlet.
• Supplies combustion air directly from outside through the stove's dedicated air connection.
• Helps prevent unwanted light and draughts entering the room.
• Includes 1.5m of semi-rigid aluminium ducting suitable for temperatures up to 300°C.
• White external louvre grille features UV-stabilised construction.

• Complete kit includes the grille, backplate, ducting and hose clips.

What's Included:

• 1 x Rytons 6×3 White Louvre Ventilator
• 1 x Rytons 6×3 Louvre Backplate with 74.5mm Diameter Spigot
• 1 x Rytons Semi-Rigid Aluminium RytHose

• 2 x Metal Hose Clips

Dimensions:

• External Louvre Grille: 155mm x 94mm
• Ducting Internal Diameter: 82mm
• Ducting External Diameter: 90mm

• Ducting Length: 1.5m expanded (410mm compressed)

Product Details:

• Manufacturer: Rytons
• Product Code: DVKIT80WH
• Colour: White
• Suitable Stove Air Inlet Diameter: 75–80mm
• Ducting Material: Single-layer aluminium

• Louvre Grille Material: UV-stabilised high-impact polystyrene

Please note: This ventilation kit is designed for stoves with a compatible manufacturer's external air inlet. Please check your stove's requirements and the relevant building regulations before installation.

The kit contains plastic components and is subject to restrictions on use in certain external wall applications under fire safety regulations. Please ensure the product is suitable for your installation before purchasing.
